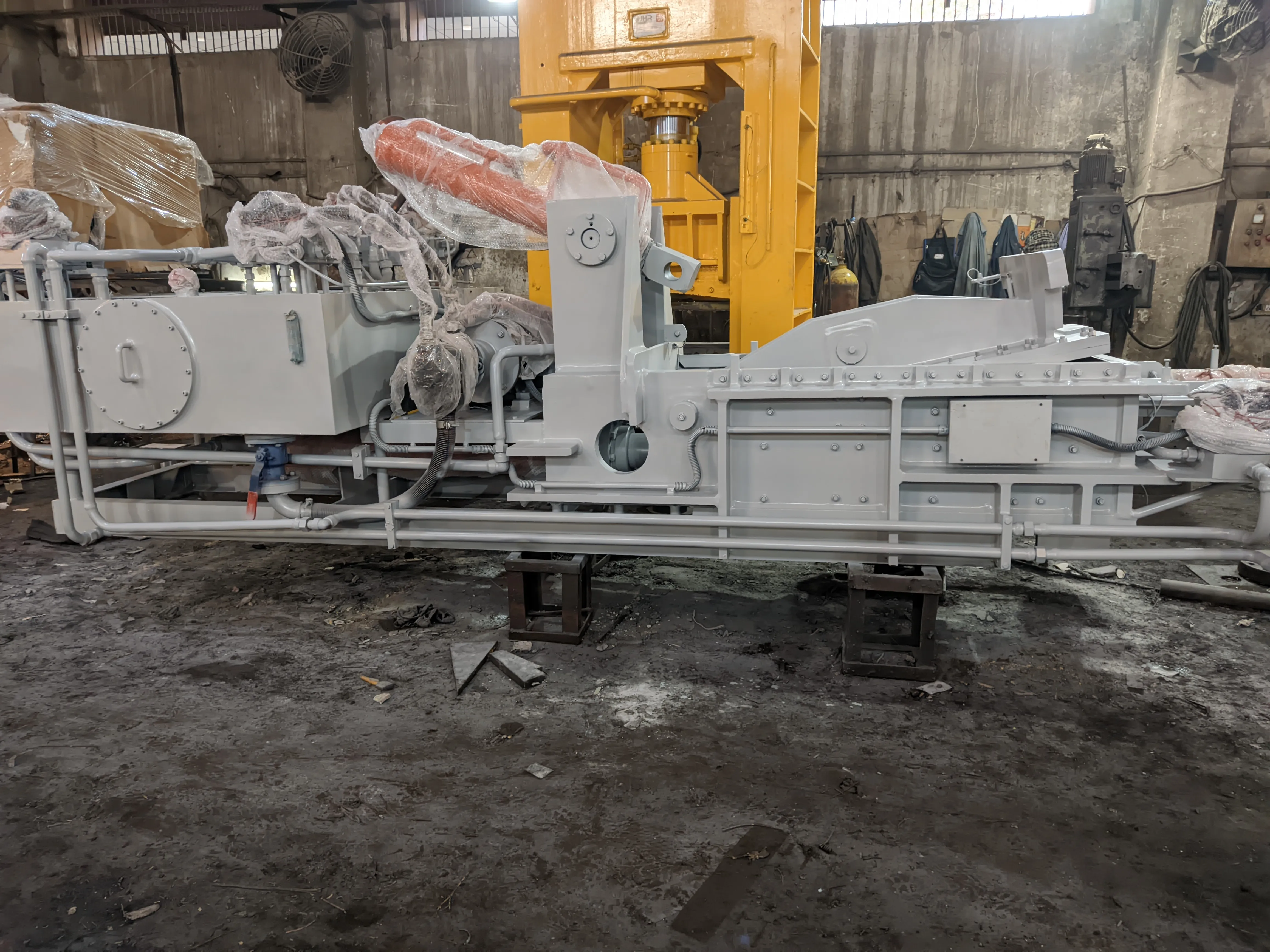

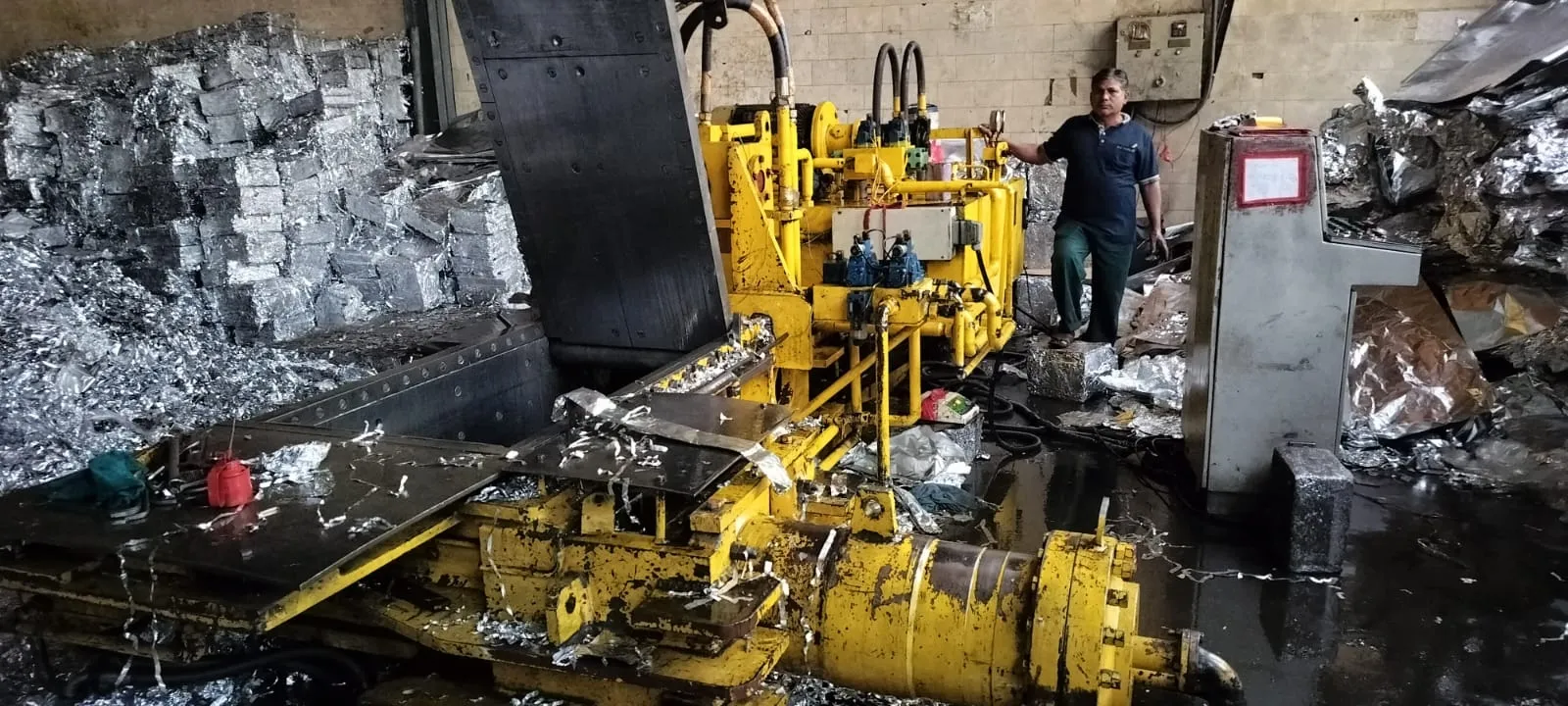

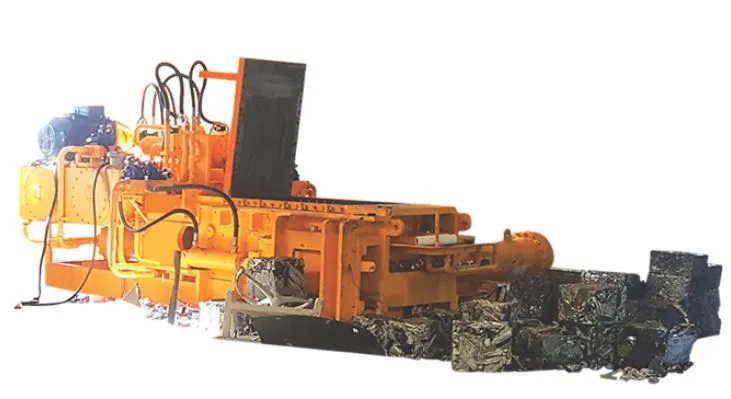

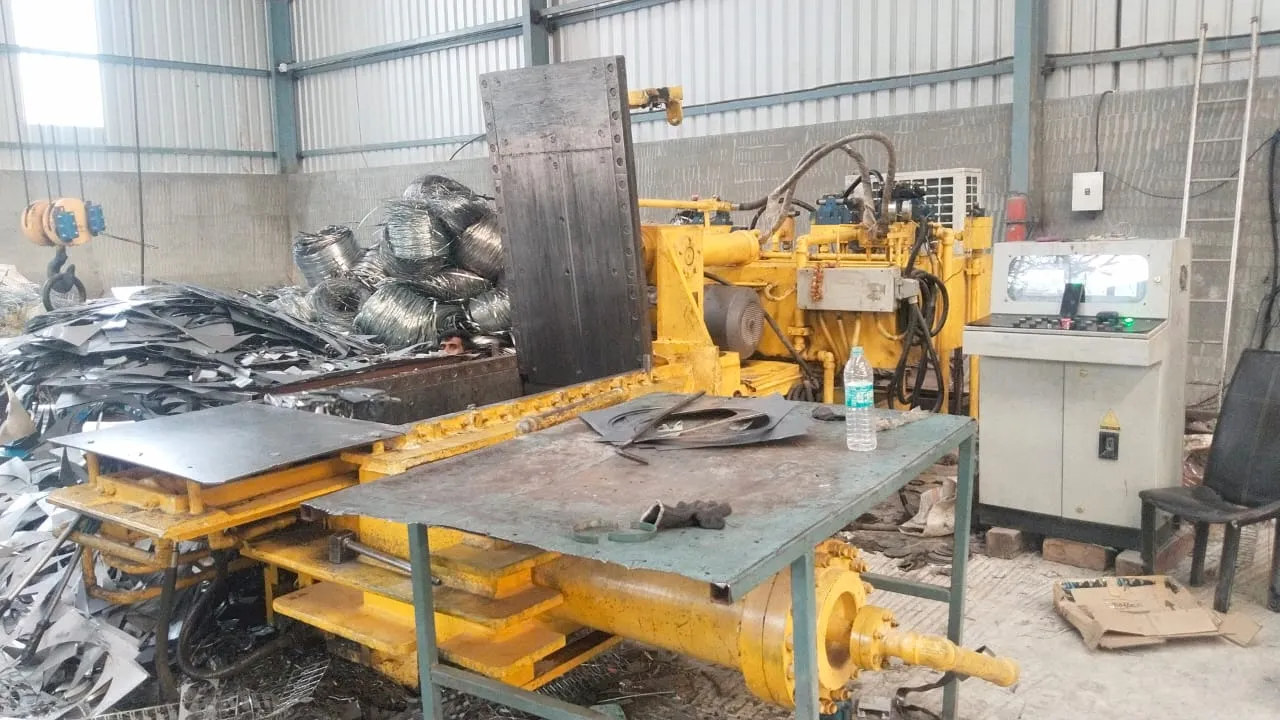

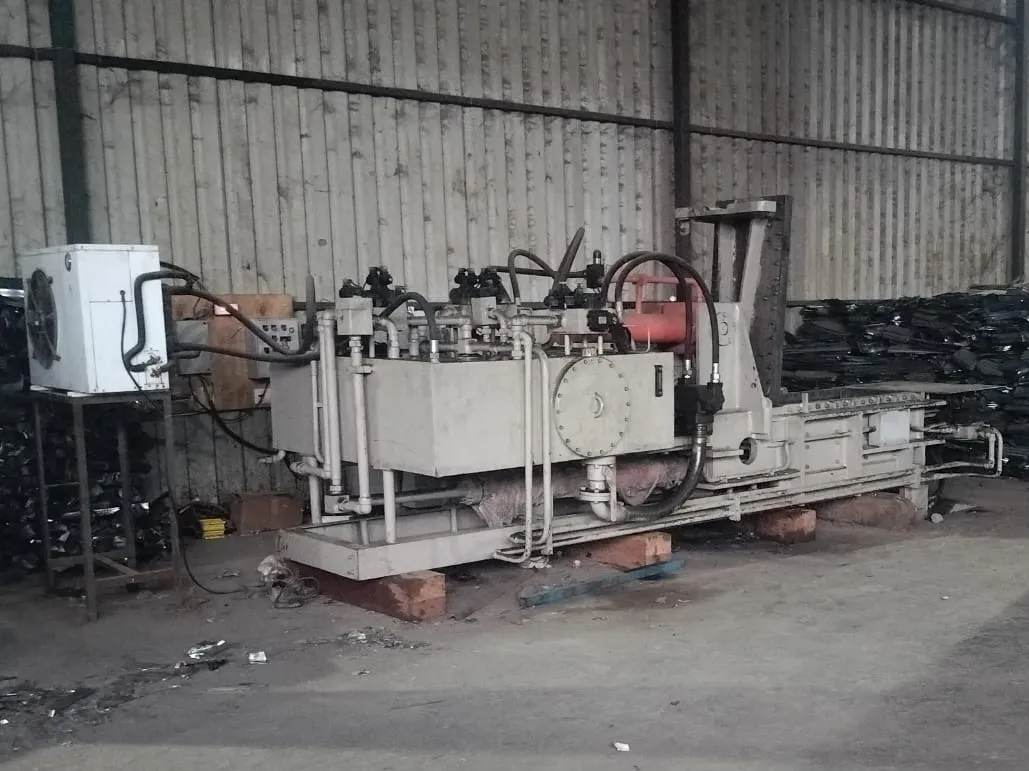

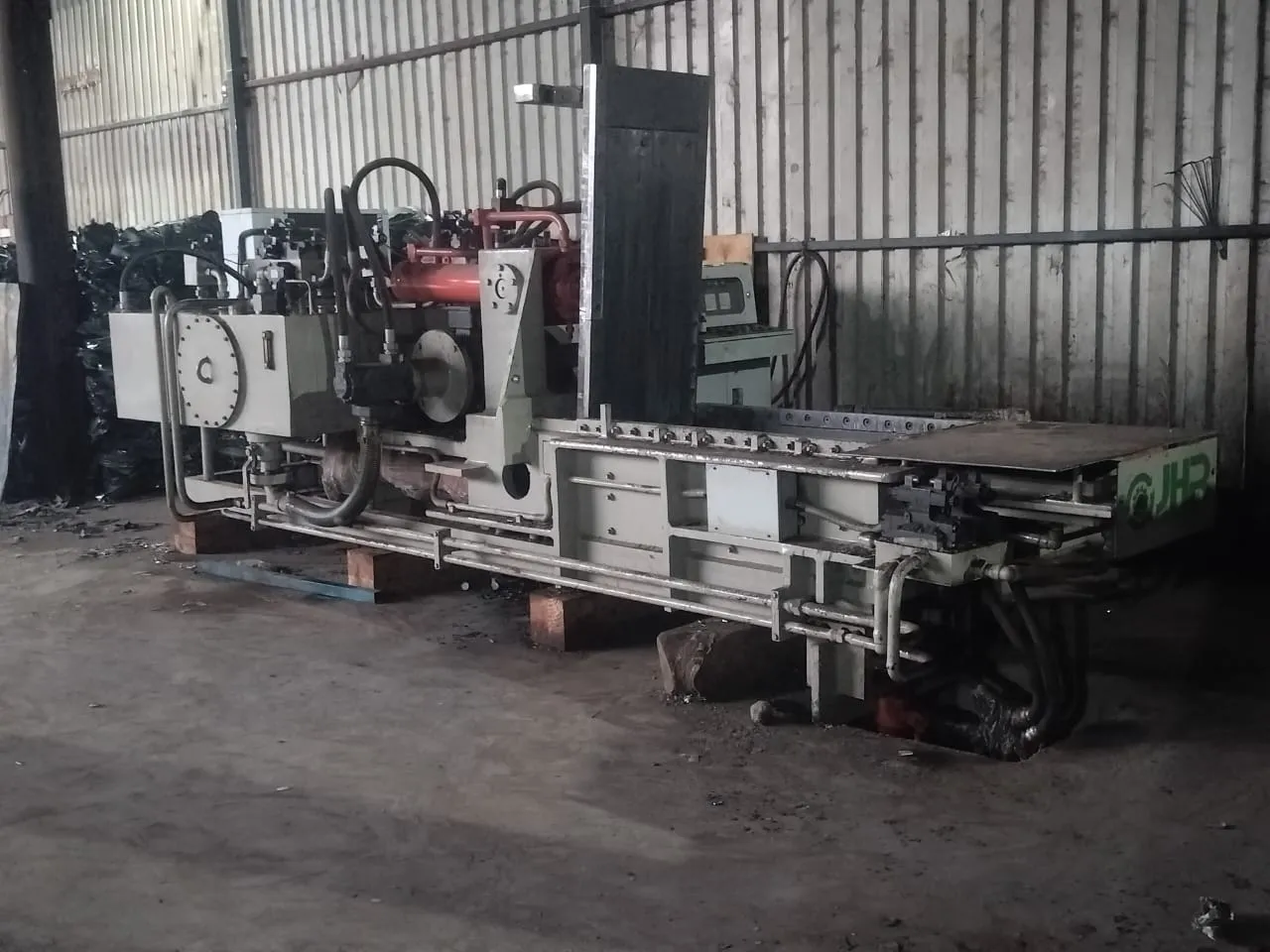

Mini PLC Baler
Metal RecyclingDescription
Compact yet powerful, the Mini PLC Baler Machine or Scrap Press/Baling Machine offers automated control and efficient compaction for smaller-scale metal scrap processing needs, providing a reliable solution with a reduced footprint.
Features
-
Production capability of up to 3tons/hr
-
India’s fastest Balers, Bale is ejected in less than 45 sec
-
Shearing blades on the edges of the top lid and chamber are provided for shearing oversized material upto 5mm.
-
Bale Size from 6 x 6 up to 12 x 14
-
Machine is operated by single button or remotely
-
Low cycle times through high efficiency hydraulic design
-
Separate manifolds for each cylinders.
-
Desktop panel with touch screen display.
-
Better Designed Cylinders for ease of maintenance
-
2.5 Ton A.C or Heat Exchanger for longer running life.
-
Replaceable Liners plate for enhanced maintenance efficiency.
-
Bale and Chamber size can be modified as per requirement
Frequently Asked Questions
-
The installation requirements may vary depending on the product or service. However, common requirements include hydraulic oil, a water-leveled floor, and suitable electrical connections (MCB, starters, etc.). Please refer to the product documentation or contact our support team for more detailed information.
| Bale Size | Chamber Size | Bale Weight (MS) | Cycle Time (Sec) | Production (AL) Tons/8hr | Production (MS/SS/Cu) Tons/8hr | Motor HP | Machine Weight (Tons) |
|---|---|---|---|---|---|---|---|
| 6x6 | 42x24x20 | 10-16 (MS) / 4-6 (Al) | 36-42 | 2-3 | 4-6 | 20 | 5.5 |
| 8x8 | 55x30x18 | 25-30 (MS) / 10-12 (Al) | 36-42 | 4-5 | 9-11 | 30/40 | 8 |
| 9x9 | 55x30x20 | 30-35 (MS) / 10-14 (Al) | 36-42 | 5-6 | 10-12 | 30/40 | 8.5 |
| 10x10 | 55x30x20 | 35-45 (MS) / 15-20 (Al) | 36-42 | 6-7 | 13-16 | 30/40 | 8.5 |
| 12x12 | 55x30x20 | 50-60 (MS) / 20-25 (Al) | 36-42 | 7-9 | 18-21 | 30/40 | 8.5 |
| 12x14 | 55x30x20 | 60-70 (MS) / 25-30 (Al) | 36-42 | 9-11 | 21-25 | 30/40 | 8.5 |
| Bale Size | Chamber Size | Bale Weight (OCC) | Cyclo Time (Sec) | Production (OCC) Tons/8hr | Motor HP | Machine Weight (Tons) |
|---|---|---|---|---|---|---|
| 12x12 | 55x24x20 | 40-50 | 36-42 | 14-18 | 30/40 | 8 |
| 12x12 | 55x30x20 | 45-55 | 36-42 | 16-19 | 30/40 | 8.5 |
| 12x14 | 55x24x20 | 50-60 | 36-42 | 18-21 | 30/40 | 8 |
| 12x14 | 55x30x20 | 55-65 | 36-42 | 19-23 | 30/40 | 8.5 |
